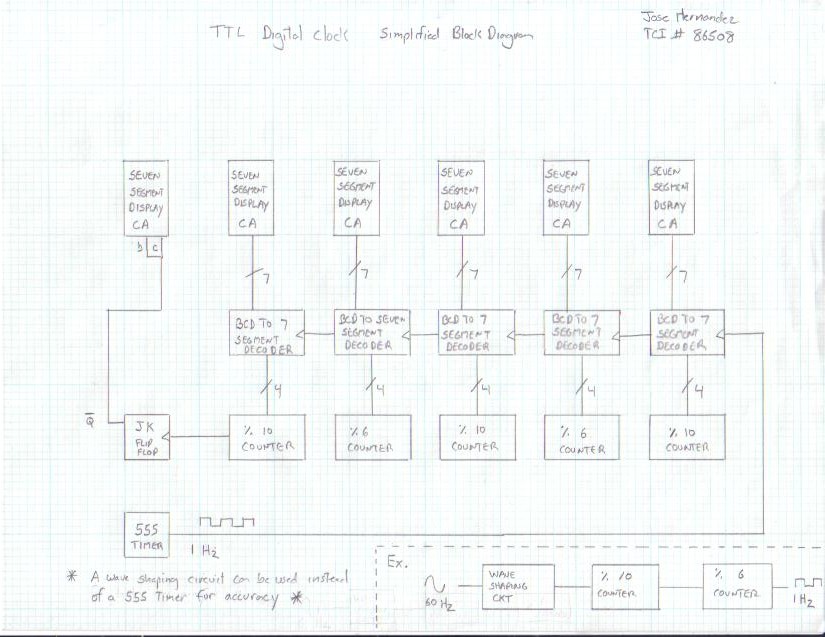

           Block Diagram

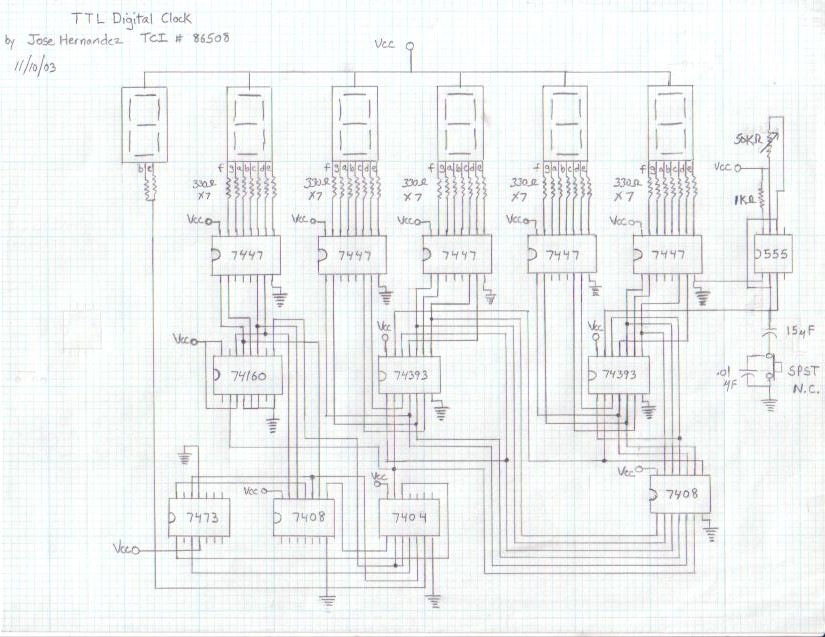

                                    Schematic

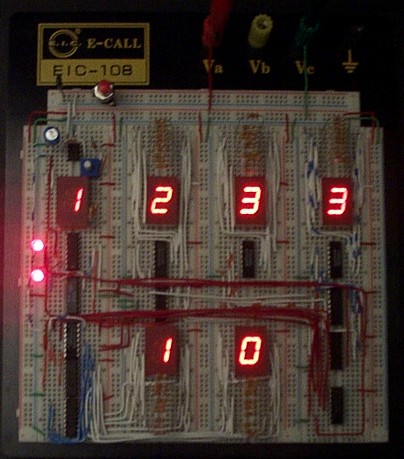

                                                                   Breadboard Prototype
